B265 4K Industrial CCD Camera function

1. The B265 4K Industrial CCD Camera features an advanced 8MP Sony CMOS sensor (1/1.8") for 4K resolution (3840×2160), delivering ultra-clear imaging for industrial inspection, quality control, and precision measurement.

2. This B265 4K Industrial CCD Camera supports USB 2.0 (UVC plug-and-play) for real-time PC viewing and HDMI output (4K@60Hz/1080p@60Hz), making it ideal for factory automation, medical imaging, and research applications.

3. With single USB port functionality, the B265 4K Industrial CCD Camera allows saving images/videos directly to a USB drive or live streaming via UVC.

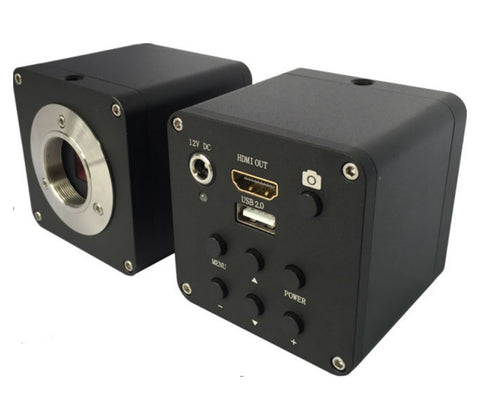

B265 4K Industrial CCD Camera

4. The B265 4K Industrial CCD Camera includes 1-8 reticle groups (customizable colors/sizes), auto/manual exposure, and white balance for precise measurement and analysis in machine vision and microscopy.

B265 4K Industrial CCD Camera Specifications

Model No	B265 (4K)
Sensor (Pixel Size)	8MP ，1/1.8" CMOS sony 4K
Resolution	3840H2160V(16:9),19201080 (16:9)
Data Bits	12bit
Pixel Size	2.0μm*2.0μm
Frame Rate	30fps @ 3840*2160
Sharpness	Above 1800TV line
Scanning Method	Progressive scan
Shutter	Electronic shutter
Dynamic Range	>90dB
Sigal-to-Noise Ratio	55dB
Sensitivity	2.0 V/lux-sec (550nm)
Exposure Control	Manual / Auto
White Balance	Manual / Auto
Lens Mount	C/CS
Video Interface	HDMI Output ，USB2.0
Storage	U-disk memory
HDMI output	38402160 60Hz（ Default ） 19201080 60Hz
USB Interface	UVC camera or U -disk
RC device	Yes
Power Supply	DC 5V/2A or 12V/1A Adaptor
Size	636363mm
Weight	G.W：0.516 KG，N.W：0.267 KG
Packing	20580145 mm

B265 4K Industrial CCD Camera – 4K Resolution with USB 2.0 & HDMI Output
