M-E100 100‑Meter AI Industrial Underwater ROV

Professional modular underwater ROV with 100‑meter neutral buoyancy tether, 4K ultra‑wide imaging, hot‑swappable battery system and up to 5kg payload capacity. Quick‑release design for fast field maintenance. Ideal for underwater inspection, aquaculture, search & rescue, public security missions. Robotic arm sold separately.

Built around a highly modular quick‑release platform, it delivers powerful propulsion, AI‑enhanced underwater imaging and rich expandability for inspection, aquaculture and emergency‑response teams.

✨ Key Features

🚀 Modular Quick‑Release Construction Pressure‑resistant, corrosion‑resistant core pressure tank protects precision internal electronics.

Batteries and accessories detach in seconds
Field spare‑part replacement completed within 5 minutes
Accessory bracket mounting as fast as 9 seconds
Biomimetic stabilizing fin + ergonomic T‑shaped tail fin for one‑hand carry and rapid deployment.

⚡ Ring‑Wing Propulsion & Full 360° Movement

Six metal thrusters, max speed 3 knots (>1.5 m/s), excellent current resistance
Patented six‑direction vector layout: full 360° yaw / pitch / roll, no dead‑angle for inspection work
Optional Upgrade: Q‑Steady 3.0 AI Station‑Lock Module for position‑holding in strong currents.

🔋 Hot‑Swap Dual‑Battery Power Solution

Hot‑swap technology: swap batteries without power‑off or rebooting the ROV
Each battery 69.12 Wh lithium‑ion, compliant for airline carry‑on luggage
Support APP underwater auto‑cruise for large‑area scan & search tasks
Optional accessory: Q‑Energy Portable Charging Station (sold separately)

📷 Advanced Underwater Imaging

Ultra‑wide Fisheye Lens: 176° FOV above water / 146° panoramic FOV underwater
1/1.8‑inch CMOS sensor, shoot 4K UHD video and RAW format photos
Macro focus down to 10 cm, sharp close‑ups even in turbid water
4‑LED lighting array: max 10,000 lumens, 160° beam angle, 3‑step brightness adjustment
AI De‑Hazing & AI Visual Enhancement: reduce particle noise, correct underwater color for clearer survey footage.

🧰 Expandable Payload System

Top + bottom dual load interfaces; up to 6 tools with optional expansion dock
Maximum payload capacity: 5 kg
Compatible with sonar, metal detector, water sampler, DVL, underwater positioning unit and more professional accessories
Removable Micro‑SD slot for fast saving & exporting mission recordings

🎯 Application Scenarios

✅ Underwater Inspection & Monitoring

✅ Aquaculture & Fisheries

✅ Emergency Search & Rescue

✅ Public Security Underwater Operations

Note: When installing multiple accessories at once, please evaluate payload and performance impact.

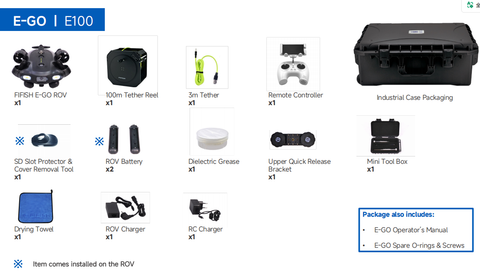

📋 What’s In The Box

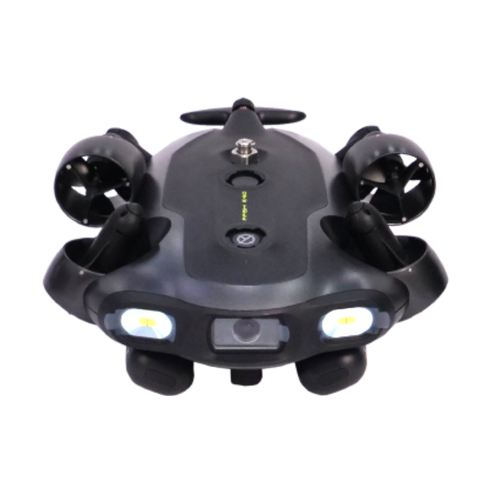

1 × E‑GO ROV

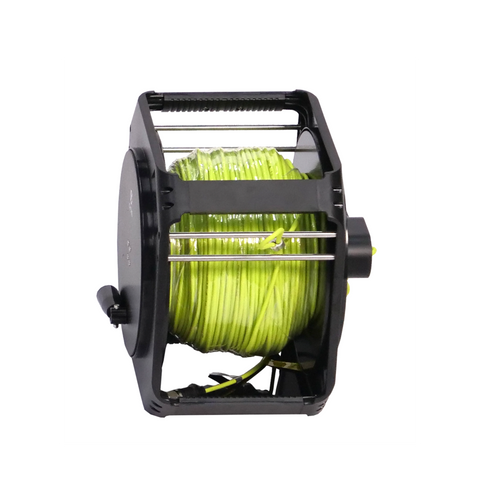

1 × 100m Tether Reel
1 × 3m Tether

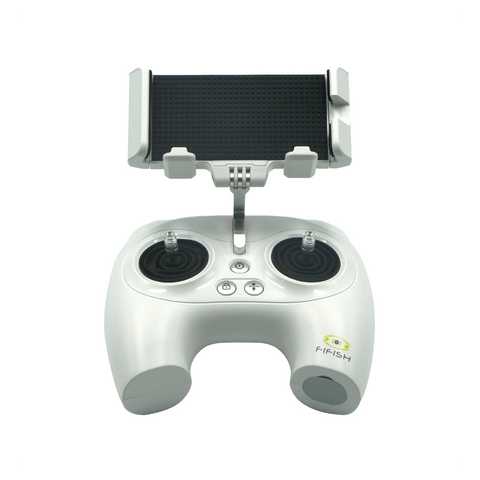

1 × Remote Controller

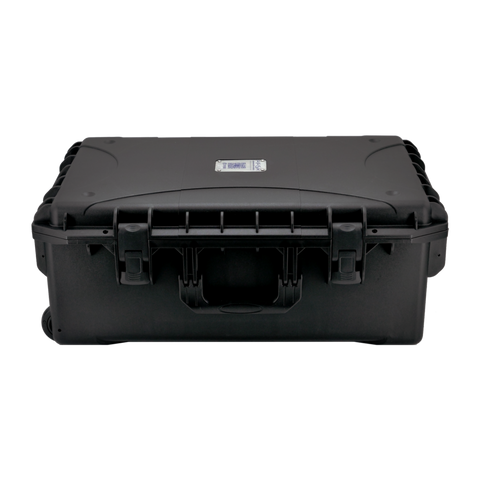

1 × Industrial Hard Case
1 × SD Slot Protector & Cover Removal Tool
2 × ROV Battery
1 × Dielectric Grease

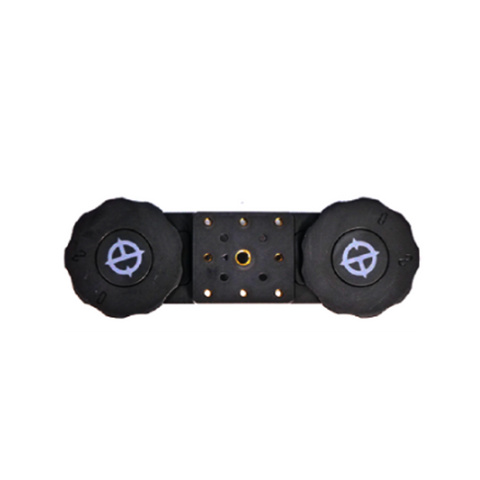

1 × Upper Quick Release Bracket
1 × Mini Tool Box
1 × Drying Towel

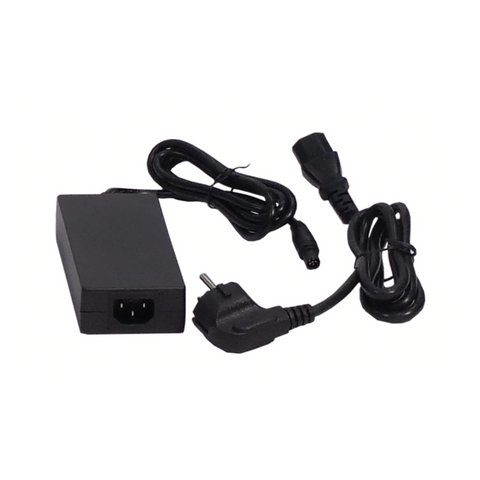

1 × ROV Charger
1 × RC Charger
E‑GO Operator’s Manual
Spare O‑rings & Screws kit

📊 Specifications

Item	Spec
Max Operating Depth	100 m
Max Speed	3 knots (>1.5 m/s)
Movement	360° Yaw / Pitch / Roll
Camera Sensor	1/1.8‑inch CMOS
FOV	176°(air) /146°(underwater)
Focus	0.1 m to ∞
Video	4K UHD 25/30fps; 1080p up to 90fps
Lights	Max 10 000 lumens, 3‑level adjustable
Max Payload	5 kg (with expansion dock)
Tether	100 m, 4.6 mm neutral‑buoyancy cable
Battery	2 × 69.12 Wh, hot‑swap supported

FAQ for E100

Q: Does E100 come with robotic arm? A: No. Robotic gripper arm is sold as separate accessory for E100.

Q: Can I hot‑swap batteries? A: Yes, no shutdown or reboot needed.

Q: Can I add Q‑Steady station‑lock later? A: Yes, it is an optional add‑on module.

Q: Are batteries airline‑approved for carry‑on? A: Yes, each battery is 69.12Wh, meets aviation carry‑on requirements.

M-E100 Industrial AI Underwater ROV | 100m Depth, 4K Camera, Hot‑Swap Battery, 5kg Max Payload
