The MP061BM Monitoring Mini Prism is a high-performance surveying reflector designed for precision monitoring and engineering measurement applications.

MP061BM Monitoring Mini Prism Key Features
1. High-Precision 25.4mm Copper-Coated Prism

The MP061BM Monitoring Mini Prism is equipped with a premium 25.4mm (1") copper-coated prism that delivers excellent reflectivity and measurement accuracy. The MP061BM Monitoring Mini Prism ensures reliable performance for monitoring and surveying applications where precision is critical.

2. Durable All-Anodized Aluminum Construction

Manufactured with an all-anodized aluminum holder, bracket, and target, the MP061BM Monitoring Mini Prism offers superior corrosion resistance and long-term durability. The rugged construction allows the MP061BM Monitoring Mini Prism to withstand harsh outdoor environments.

3. Middle-Mounted Adjustable Vial for Fast Leveling

The MP061BM Monitoring Mini Prism features a side-mounted 40-minute adjustable middle vial that enables quick and accurate leveling in the field. This practical design helps the MP061BM Monitoring Mini Prism improve surveying efficiency while maintaining measurement accuracy.

MP061BM Monitoring Mini Prism

4. 360° Rotation with Friction Lock Mechanism

Designed for flexible field operation, the MP061BM Monitoring Mini Prism includes a friction lock mechanism that allows full 360° prism rotation while securely maintaining the selected position. The MP061BM Monitoring Mini Prism easily adapts to different measurement angles.

5. Universal 5/8"-11 Thread with Complete Accessories

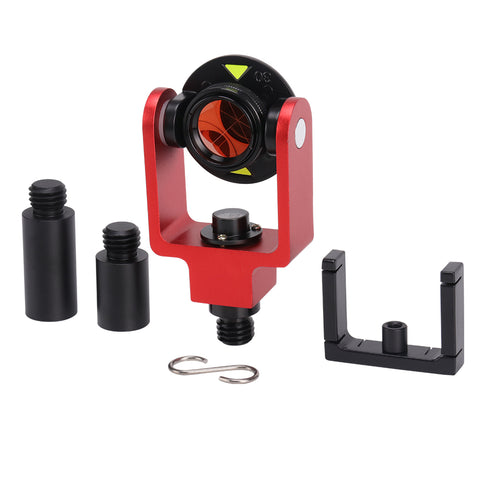

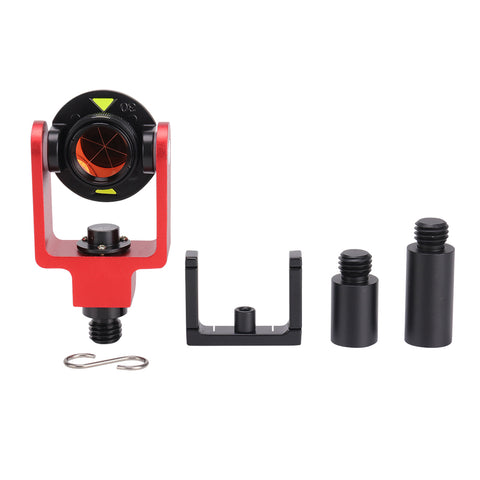

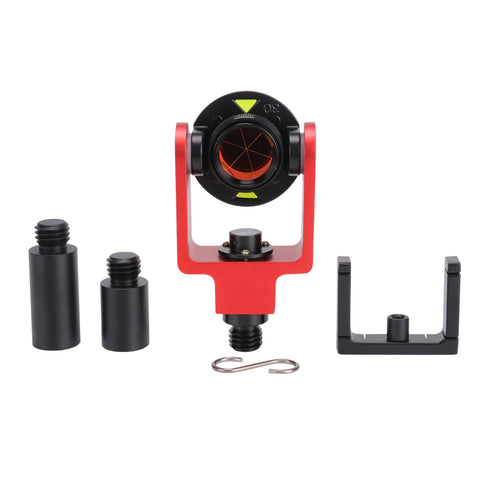

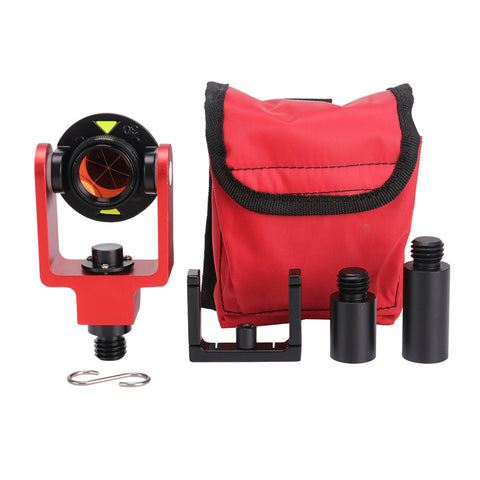

The MP061BM Monitoring Mini Prism is fitted with a standard 5/8"-11 thread, making it compatible with most prism poles, tribrachs, and surveying accessories. Each MP061BM Monitoring Mini Prism includes a plumb bob prism point with hook, bracket, 5/8"-11 extension, and a carrying case with a convenient belt loop.

MP061BM Monitoring Mini Prism Specification

Specification	Details
Product Model	MP061BM
Prism Diameter	25.4 mm (1")
Prism Type	Copper-Coated Monitoring Mini Prism
Frame Material	Powder-Coated Aluminum
Vial Position	Middle Vial
Vial Type	40-Minute Adjustable Vial
Locking Mechanism	Friction Lock
Mounting Thread	Standard 5/8"-11
Corrosion Resistance	Yes
Carrying Case	Included
Standard Accessories	Plumb Bob Prism Point with Hook, Bracket, 5/8"-11 Extension, Carrying Case with Belt Loop

MP061BM Monitoring Mini Prism | Professional 25.4mm Copper-Coated Mini Prism with Middle Vial for Surveying
