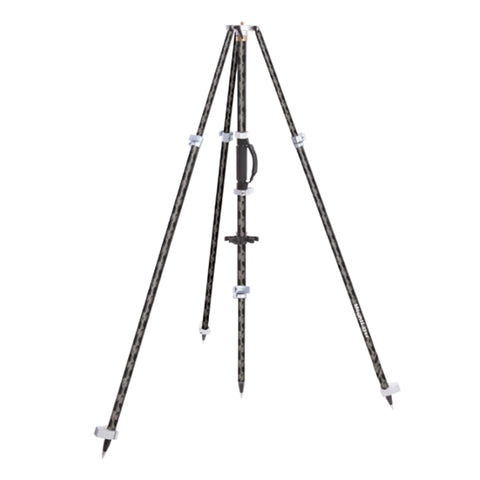

N62000 2-Section 100% Carbon Fiber Quadruped Description:

Built for demanding field surveying tasks, the N62000 2-Section 100% Carbon Fiber Quadruped is ideal for professionals seeking top-tier stability and efficient operation. It perfectly embodies the meaning of "carbon fiber quadpod for GNSS," integrating the lightweight strength of aerospace-grade materials with a user-friendly, quick-operation design, providing an impeccable support platform for your GNSS receiver and total station.

Key Advantages: The Ultimate Balance of Lightweight and Robustness

100% Pure Carbon Fiber Winding Process: The main shaft is manufactured using dry winding technology, ensuring fiber continuity and optimal mechanical distribution. This not only delivers exceptional robustness, effectively resisting wind vibration and torque, but also achieves significant weight reduction, making the equipment much easier to carry and move between locations over extended periods, greatly improving fieldwork efficiency.

Professional quadpod for GNSS design: The classic four-legged support structure provides stability and anti-settlement capabilities far exceeding traditional tripods. Whether conducting long-term static observations or high-precision control network measurements, it ensures your instrument remains rock-solid, guaranteeing absolutely reliable data acquisition.

N62000 2-Section 100% Carbon Fiber Quadruped

Efficient and user-friendly design, simplifying workflow

Quick Clamp Lock system: Equipped with a Quick Clamp Lock device, leg extension and retraction adjustments are quick, intuitive, and secure. Easy one-handed operation and an additional safety lock in any position ensure quick and stable height adjustments when setting up on steep slopes or uneven ground.

Foldable center pole, flexible and versatile: The integrated 2-meter foldable center pole is a major highlight. It not only rotates 360 degrees, allowing you to easily navigate around obstacles or optimize cable management, but it also folds up quickly for storage, further reducing transportation and storage space.

N62000 2-Section 100% Carbon Fiber Quadruped: Multifunctional Adaptor and Precise Positioning:

Standard configuration includes a detachable 5/8"-11" adapter, compatible with most mainstream GNSS receivers and surveying equipment on the market, allowing for quick and convenient instrument switching.

The center post features 3-position fixed height adjustment (locked via a steel locking pin), enabling quick setting to precise working heights of 2.0 meters, 1.8 meters, or 1.5 meters to meet different surveying scenarios and ergonomic needs, achieving rapid and accurate station setup.

N62000 2-Section 100% Carbon Fiber Quadruped Application Scenarios:
This product is a powerful assistant for high-precision surveying operations, especially suitable for:

GNSS control network surveying and base station construction

Topographic surveying, engineering layout, and other operations requiring frequent movement

Precision surveying tasks in windy or soft ground environments

N62000 2-Section 100% Carbon Fiber Quadruped | High-Stability, Quick-Lock-Up System Designed for GNSS Surveying
