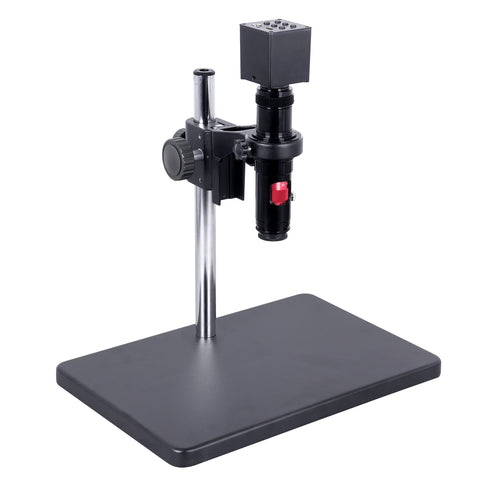

Industrial Microscope Inspection System B37T-05-144 – Precision Imaging for Quality Control

The B37T-05-144 Industrial Microscope Inspection System combines an 8MP Sony CMOS camera, a 0.5X zoom lens, and 144 high-intensity LED lights for superior imaging in industrial inspection, electronics assembly, and precision measurement.

Industrial-Grade Microscope Inspection System B37T-05-144 with Camera：

Model No	B37T Measuring Edition
Sensor (Pixel Size)	8MP，1/1.8" Sony CMOS
Resolution	3840H2160V (16:9), 19201080 (16:9)
Data Bits	12bit
Pixel Size	2.0μm*2.0μm
Frame Rate	60fps@38402160, 60fps@19201080
Sharpness	Above 1800TV line
Scanning Method	Progressive scan
Shutter	Electronic shutter
Dynamic Range	>90dB
Sigal-to-Noise Ratio	55dB
Sensitivity	2.0 V/lux-sec (550nm)
Exposure Control	Manual / Auto
White Balance	Manual / Auto
Lens Mount	C/CS
Video Interface	HDMI Output USB2.0
Storage	U-disk memory
HDMI output	38402160 60Hz（ Default ） 19201080 60Hz
USB Interface	UVC camera or U -disk
RC device	NO
Power Supply	DC 12V/2A Adaptor
Menu Function	1. Two USB ports (one for USB mouse, one for USB drive/can be switched to UVC) 2. Save images to USB drive, and browse pictures/videos from USB drive 3. Reticle: 1-12 groups, selectable colors, adjustable size 4. Freeze function: dual-screen and quad-screen display 5. Scale ruler: adjustable pixel count for each graduation 6. Measurement function: distance between two points, rectangle, circle, angle, etc.
Size	636359mm
Weight	G.W：0.519 KG，N.W：0.226 KG
Packing	20580145 mm

C-mount microscope lens

Model		GC6745
Category		Zoom Lens
Optical Magnification		0.67X-4.5X
Working Distance		98±2mm
Magnification (with 1x eyepiece)		0.67X	1.0X	1.5X	2.0X	2.5X	3.0X	3.5X	4.0X	4.5X
Magnification (with 0.5x eyepiece)		0.335X	0.5X	0.75X	1.0X	1.25X	1.5X	1.75X	2.0X	2.25X
Depth of Field (mm)		1.9	0.95	0.44	0.29	0.23	0.16	0.13	0.12	0.1
NA		0.03	0.04	0.045	0.05	0.05	0.055	0.06	0.06	0.065
F.NO.		11.6	12	12.5	14	17.8	17.8	20.5	23.5	26.5
Resolution (μm)		11.18	8	5.6	4.8	4.8	3.95	3.95	3.95	3.95
TV Distortion		0.019%	0.035%	0.002%	0.003%	0.004%	0.001%	0.002%	0.002%	0.002%
Field of View (with 1x eyepiece) (mm)	1/2"	11.94	8	5.33	4	3.2	2.67	2.29	2	1.78
Field of View (with 1x eyepiece) (mm)	1/3"	8.95	6	4	3	2.4	2	1.71	1.5	1.33
Maximum Compatible Sensor:		1/2"
Mount Type		C-Mount

B37T-05-144 Industrial Microscope Inspection System Key Features:

8MP High-Resolution Camera – 3840×2160 resolution @60fps, 2.0µm pixel size, and >1800 TV lines for ultra-clear imaging.
0.67X-4.5X Optical Zoom Lens – Adjustable magnification (0.335X-2.25X with 0.5X eyepiece) for flexible inspection.
144 High-Power LED Lights – 80,000-100,000 lux brightness, optimized for 8-18cm working distance.
Wide Compatibility – C/CS-mount lens interface, HDMI & USB 2.0 output, and U-disk storage.
Advanced Imaging – 12-bit data depth, >90dB dynamic range, and auto/manual exposure & white balance.

Industrial-Grade Microscope Inspection System B37T-05-144 Ideal for PCB inspection, semiconductor analysis, material science, and precision manufacturing, the B37T-05-144 ensures high accuracy, speed, and reliability in industrial applications.

Industrial-Grade Microscope Inspection System B37T-05-144 – High-Resolution 8MP CMOS Camera with 0.5X Zoom Lens & 144-LED Lighting
