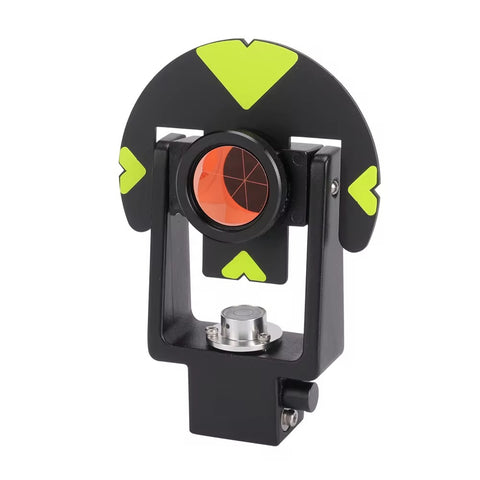

GMP101 Mini Prism Key Features
1. Swiss-Style Monitoring Design

The GMP101 Mini Prism features a Swiss-style monitoring prism design developed for surveying, construction monitoring, and precise positioning applications. Its compact structure provides a practical and cost-effective solution for professional fieldwork.

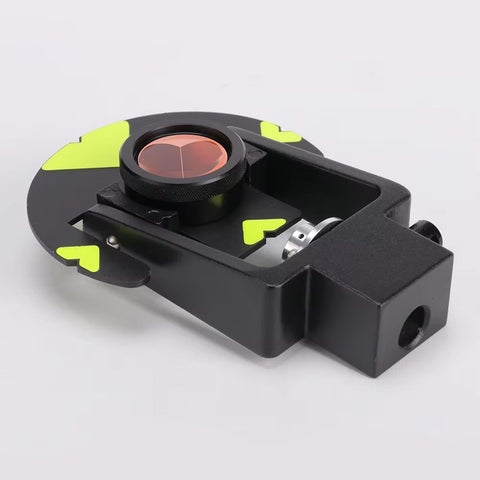

2. Integrated Target Plate & Level Bubble

The GMP101 Mini Prism comes with an integrated target plate and built-in level bubble, allowing surveyors to quickly align and position the prism during installation. This design helps simplify field setup and improves measurement consistency.

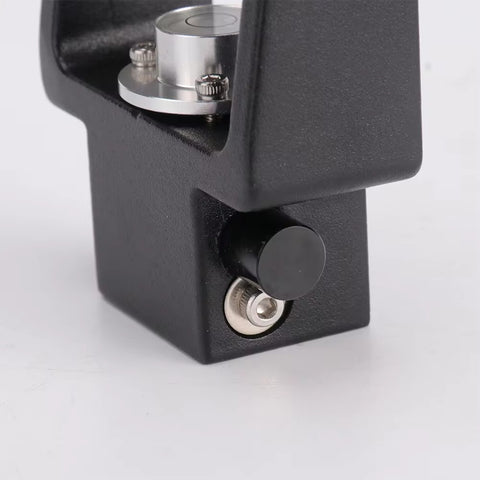

3. Stable Ground Spike Installation

The GMP101 Mini Prism is equipped with a sturdy ground spike that provides reliable fixation on soil, ground surfaces, and monitoring points. The stable installation design makes the GMP101 Mini Prism suitable for repeated outdoor surveying and construction monitoring tasks.

GMP101 Mini Prism

4. Rugged Die-Cast Aluminum Body

Built with a durable die-cast aluminum body, the GMP101 Mini Prism is designed to withstand demanding field environments. The robust housing provides dependable protection for surveying and monitoring applications where durability is essential.

5. 25.4mm Copper-Coated Prism

The GMP101 Mini Prism is equipped with a 25.4 mm copper-coated prism that provides a reliable reflective target for surveying instruments. This makes the GMP101 Mini Prism a practical choice for monitoring points, construction surveying, and engineering measurement work.

6. Convenient Carrying Solution

Each GMP101 Mini Prism includes a soft carrying bag for convenient transportation and protection. The compact design makes the GMP101 Mini Prism easy to carry between different surveying sites and monitoring locations.

GMP101 Mini Prism Applications
Construction Monitoring
Surveying & Engineering Measurement
Structural Monitoring
Road & Infrastructure Projects
Outdoor Monitoring Points

GMP101 Mini Prism Specification

Item	Specification
Product Model	GMP101 Mini Prism
Prism Diameter	25.4 mm
Prism Material/Coating	Copper-Coated Prism
Body Material	Die-Cast Aluminum
Target Plate	Integrated
Level Bubble	Built-In
Installation	Ground Spike
Application	Surveying & Construction Monitoring
Carrying Case	Soft Carrying Bag
Design	Compact & Rugged

GMP101 Mini Prism with 25.4mm Copper-Coated Prism for Monitoring
