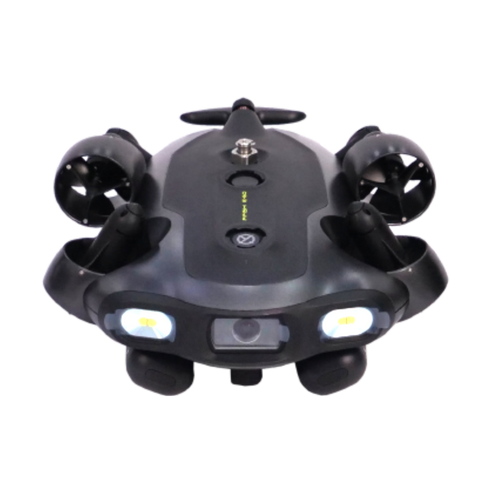

M-E200A 200‑Meter Industrial Underwater ROV with Robotic Gripper Arm

Heavy‑duty 200‑m depth professional ROV equipped with integrated robotic grasping arm, 4K ultra‑wide camera, hot‑swap battery system and up to 5 kg payload. Two configurations available: Standard (2 batteries) / Premium E‑E200A (4 batteries + Q‑Energy Charging Station). Perfect for underwater recovery, salvage, inspection and search‑rescue tasks.

M-E200A is a heavy‑duty industrial ROV for missions down to 200 meters. Factory‑fitted robotic gripper arm enables grasping, sampling and underwater recovery work. Modular quick‑release design, strong thruster power and AI‑optimized imaging make it ideal for salvage, law‑enforcement, search‑rescue and complex underwater engineering inspection.

✨ Key Features

🚀 Modular Quick‑Release Construction Pressure‑resistant, corrosion‑resistant core pressure tank protects precision internal electronics.

Batteries & accessories detach within seconds
Field spare‑part replacement finished within 5 minutes
Accessory bracket installation completed in only 9 seconds
Biomimetic stabilizing fin + T‑shape tail fin for easy one‑hand transport & fast deployment

⚡ Powerful Propulsion & 360° Full‑Dimensional Movement

Six high‑performance metal thrusters, max speed 3 knots (>1.5 m/s), strong anti‑current performance
Patented six‑direction vector layout delivers full 360° yaw / pitch / roll, eliminating inspection blind spots
Optional Upgrade: Q‑Steady 3.0 AI Station‑Lock Module for stable hovering under strong currents.

🤖 Built‑in Robotic Gripper Arm Factory‑installed robotic grasping arm for underwater grabbing, object retrieval, sampling and manipulation tasks. Arm spare seals & screws included in package.

🔋 Hot‑Swap Battery Power System

Hot‑swap battery change: no power‑down or system restart
Single battery 69.12 Wh lithium‑ion, compliant with airline carry‑on regulations
APP supports auto‑cruise for large‑area scanning missions
Premium M-E‑E200A version includes Q‑Energy Charging Station:
- Smart Charge Mode: charge to 90% within 50 min
- Outdoor Power Mode: dual 36W Type‑C output ports
- Management Mode: real‑time battery health monitoring via display screen

📷 Premium Underwater Imaging System

Ultra‑wide Fisheye Lens: 176° FOV above water /146° panoramic FOV underwater
1/1.8‑inch CMOS sensor, 4K UHD video recording + RAW photo capture
Macro focusing down to 10 cm, sharp close‑range imaging even in turbid water
Four‑lamp LED lighting up to 10 000 lumens, 160° beam angle, 3‑level adjustable brightness
AI De‑Hazing & AI visual enhancement: filter underwater suspended‑particle noise, restore natural underwater colors.

🧰 High‑Capacity Expandability

Top‑bottom dual load interfaces, expandable up to 6 working tools with expansion dock
Max payload capacity: 5 kg
Compatible with 2D sonar, metal detector, water/mud sampler, DVL, U‑QPS positioning, water‑quality sensors and more
Removable Micro‑SD slot for quick storage and export of underwater mission footage

🎯 Application Scenarios

✅ Underwater Object Retrieval & Salvage

✅ Emergency Search & Rescue

✅ Public Security & Law‑Enforcement Underwater Tasks

✅ Offshore & Underwater Structure Inspection

✅ Aquaculture Heavy‑Duty Operations

📦 Variants & Box Contents

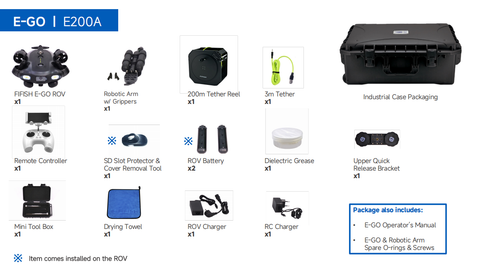

M-E200A Standard (2 Batteries)

1 × FIFISH E‑GO ROV
1 × Factory‑Installed Robotic Arm w/ Grippers
1 × 200m Tether Reel
1 × 3m Tether
1 × Remote Controller
1 × Industrial Hard Case
1 × SD Slot Protector & Cover Removal Tool
2 × ROV Battery
1 × Dielectric Grease
1 × Upper Quick Release Bracket
1 × Mini Tool Box
1 × Drying Towel
1 × ROV Charger
1 × RC Charger
E‑GO Operator’s Manual
Spare O‑rings & Screws (ROV + Robotic Arm)

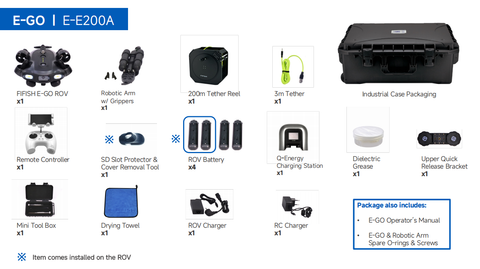

M-E‑E200A Premium (4 Batteries + Q‑Energy Charging Station)

1 × FIFISH E‑GO ROV
1 × Factory‑Installed Robotic Arm w/ Grippers
1 × 200m Tether Reel
1 × 3m Tether
1 × Remote Controller
1 × Industrial Hard Case
1 × SD Slot Protector & Cover Removal Tool
4 × ROV Battery
1 × Q‑Energy Charging Station
1 × Dielectric Grease
1 × Upper Quick Release Bracket
1 × Mini Tool Box
1 × Drying Towel
1 × ROV Charger
1 × RC Charger
E‑GO Operator’s Manual
Spare O‑rings & Screws (ROV + Robotic Arm)

📊 Specifications

表格

Item	Spec
Max Operating Depth	200 m
Max Speed	3 knots (>1.5 m/s)
Movement	360° Yaw / Pitch / Roll
Camera Sensor	1/1.8‑inch CMOS
FOV	176°(air) /146°(underwater)
Focus	0.1 m to ∞
Video	4K UHD 25/30fps;1080p up to 90fps
Lights	Max 10 000 lumens, 3‑level adjustable
Max Payload	5 kg (with expansion dock)
Tether	200 m,4.6 mm neutral‑buoyancy cable
Battery	Standard:2 ×69.12Wh / Premium:4 ×69.12Wh
Arm	Factory‑integrated Robotic Gripper Arm

FAQ for M-E200A

Q: What is difference between M-E200A Standard and M-E‑E200A Premium? A: M-E‑E200A includes double batteries (4 total) plus the Q‑Energy portable smart charging station.

Q: Is robotic arm pre‑installed out‑of‑box? A: Yes, robotic gripper arm is factory fitted for M-E200A / M-E-E200A.

Q: Can I perform hot‑swap battery replacement? A: Yes, hot‑swap supported without ROV shutdown.

Q: Are batteries airline carry‑on compliant? A: Yes, each battery is 69.12Wh and meets aviation regulations.
