C66-H Purple Descriptions

The C66-H Purple industrial camera features a 4.09MP CMOS sensor, delivering stunning image quality at resolutions of 1920x1080 (16:9) and 1280x720 (16:9). This makes it ideal for various industrial applications requiring precision.

With the C66-H Purple, you can select from 1-30 reticle groups with customizable colors and adjustable line widths, enhancing your measurement and alignment tasks.

The C66-H Purple industrial camera employs advanced 3D noise reduction, ensuring clear images even in challenging environments, making it perfect for low-light scene modes.

Capture smooth video with a frame rate of 60fps. The C66-H Purple's progressive scan technology ensures that motion is rendered fluidly and without distortion.

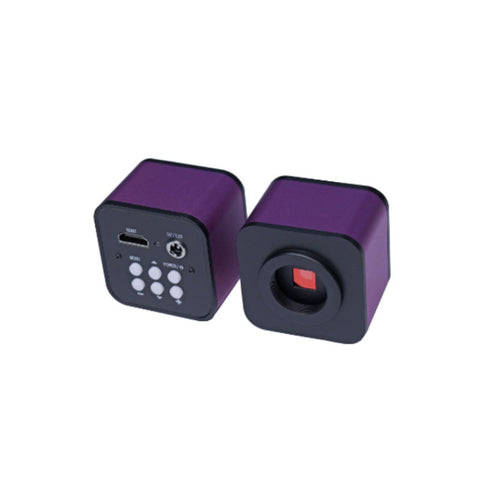

C66-H Purple Industrial Camera

C66-H Purple Specifications

Model No	C66-H Purple
Sensor (Pixel Size)	4.09MP,1/1.8" CMOS
Resolution	19201080(16:9),19201080(16:10) 1280720(16:9),1024768(4:3)
Data Bits	10bit
Pixel Size	3.0 μm*3.0μm
Frame Rate	60fps
Sharpness	Above 900TV line
Scanning Method	Progressive scan
Shutter	Electronic shutter
Dynamic Range	>90dB
Sigal-to-Noise Ratio	55dB
Sensitivity	2.0 V/lux-sec (550nm)
Exposure Control	Manual / Auto
White Balance	Manual / Auto
Lens Mount	C/CS
Video Interface	HDMI Output
Storage	No
HDMI output	1920*1080 60Hz（ Default ）
USB Interface	No
RC device	No
Power Supply	DC 5V/1A or 12V/1A Adaptor
Size	555543mm
Weight	G.W：0.25KG，N.W：0.118KG
Packing	13575110mm

C66-H Purple Industrial Camera - High Resolution 4.09MP with Advanced Noise Reduction
