MP096 Compact Angled Mini Prism describe

Purpose-Built for Confined Spaces – The MP096 Compact Angled Mini Prism is specifically engineered for short-range monitoring in hard-to-reach locations such as bridges, tunnels, and railway infrastructure, where standard prisms simply cannot fit.

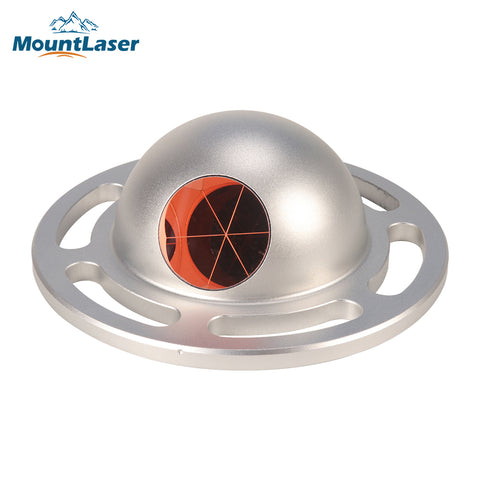

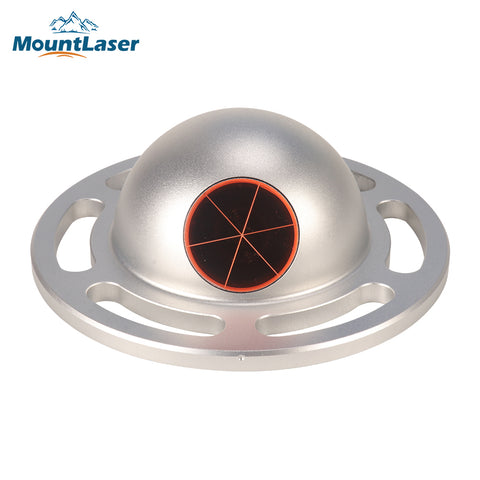

Robust & Precision Construction – Featuring a 25.4 mm (1") prism securely housed in a solid aluminum body, the MP096 Compact Angled Mini Prism delivers long-term durability and consistent alignment accuracy, even in demanding field conditions.

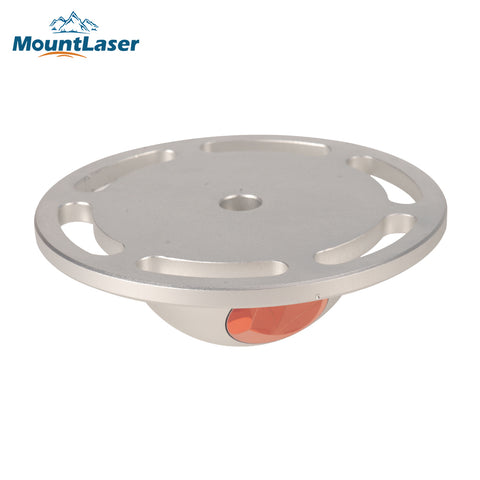

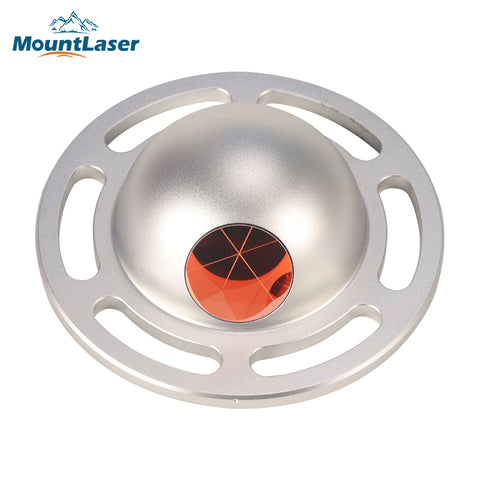

Ultra-Low Profile for Tight Installations – With a 100 mm diameter base plate and just 35 mm overall height, the MP096 Compact Angled Mini Prism offers a low-profile design that makes it ideal for mounting in areas with severe spatial restrictions.

MP096 Compact Angled Mini Prism

Flexible Mounting Options – The MP096 Compact Angled Mini Prism can be installed using either adhesive or dowel pins, giving you the versatility to set up temporary monitoring points or permanent fixed references with ease.

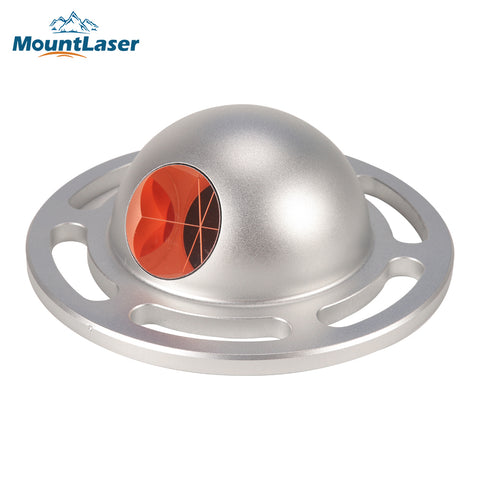

Optimized Viewing & Full ATR Compatibility – Available in 30° and 45° angled versions, the MP096 Compact Angled Mini Prism accommodates diverse line-of-sight requirements, and its full compatibility with Automatic Target Recognition (ATR) instruments ensures efficient automated tracking and measurement.

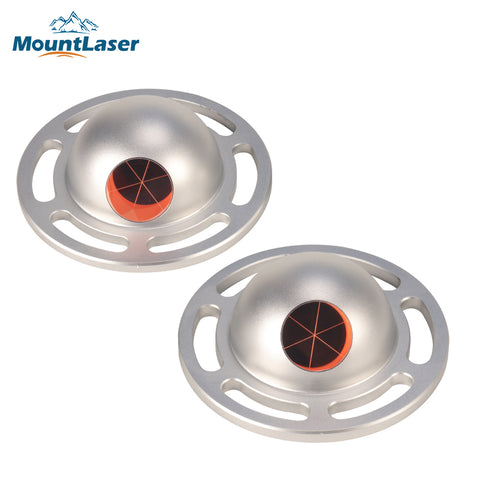

MP096 Compact Angled Mini Prism Two models are available：

MP096-30 Compact Angled Mini Prism and MP096-45 Compact Angled Mini Prism

Model Options
MP096-30: Prism angled at 30°
MP096-45: Prism angled at 45°

MP096 Compact Angled Mini Prism Application Scenarios
Bridge girder deflection
Tunnel wall convergence
Railway sleeper settlement
Dam face displacement
Excavation slope movement.

The MP096 Compact Angled Mini Prism reliably handles all these short-range monitoring tasks in confined infrastructure sites.

MP096 Compact Angled Mini Prism – Range Monitoring Prism for Bridges, Tunnels & Railways – 30° & 45° Angled Options
