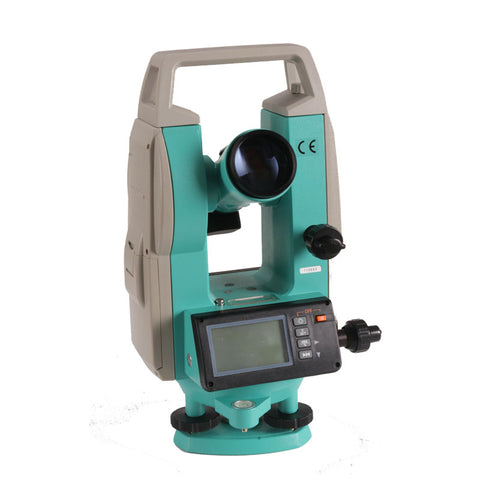

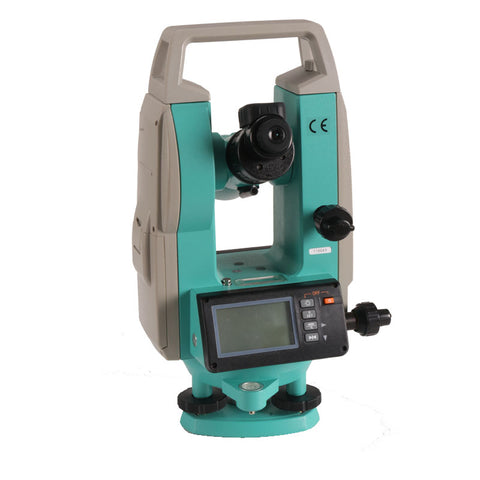

High-Precision DT-01 Electronic Theodolite feature:

1. Uncompromising Precision & Efficiency
The DT-01 Electronic Theodolite is engineered for professionals who demand absolute accuracy. Featuring a high-accuracy absolute encoder with a 1"/5" minimum reading, this electronic theodolite guarantees reliable angle measurement for your most critical projects.

2. Integrated Dual Laser Plummet System
Streamline your setup process with the built-in top and bottom laser plummets. This innovative feature of the DT-01 Electronic Theodolite provides fast and precise centering, significantly enhancing workflow efficiency on the job site.

DT-01 Electronic Theodolite

3. Powerful 30X Erect Imaging Telescope
Equipped with a 30x magnification erect image telescope, the DT-01 Electronic Theodolite delivers a bright, right-side-up view. This allows for easy targeting and clear observations, minimizing eye strain during extended use.

4. Versatile Laser Pointer & Robust Design
The integrated coaxial laser pointer is visible up to 200m, ideal for alignment and marking tasks. Built to withstand harsh environments, this durable electronic theodolite operates flawlessly in temperatures from -20℃ to 50℃, ensuring reliability wherever your work takes you.

5. User-Friendly Digital Operation
The DT-01 Electronic Theodolite features a dual-face LED backlit display for easy reading in all lighting conditions. Powered by a long-lasting Li-ion battery, this electronic theodolite is designed for all-day productivity without interruption.

The DT-01 series Electronic Theodolite includes the following four types:

DT-01LO Electronic Theodolite
Theodolite, Tribrach Nondetachable, Bottom: Laser (Red Beam), Top: Optical

DT-01LL Electronic Theodolite
Theodolite, Tribrach Nondetachable, Bottom: Laser (Red Beam), Top: Laser (Red Beam)

DT-01OO Electronic Theodolite
Theodolite, Tribrach Nondetachable, Bottom: Optical, Top: Optical

DT-01OL Electronic Theodolite
Theodolite, Tribrach Nondetachable, Bottom: Optical, Top: Laser (Red Beam)

DT-01 Electronic Theodolite Specifications

Model No.		DT-01
Tribrach	Model	Nondetachable
Telescope	Imaging	Erect
	Magnification	30X
	Objective Aperture	45mm
	Resolution	3"
	FOV	1°30'
	Minimum Focus	1m
	Multiplication/Additive Constant	100/ 0
	Length	170mm
Angle Measurement	Measuring Mode	Absolute Encoder
	Minimum Reading	1"/ 5"
	Reading Accuracy	2"
	Circle Diameter	78mm
	Angle Units	360°/ 400gon/ 6400mil
Compensator	Tilt Sensor	Yes
Compensator	Range	±3'
Laser Plummet	Wave Length	635nm Red Beam
	Power	1mw
	Accuracy (1.5m)	1mm
	Laser Grade	ClassⅡ
Optical Plummet (Optional)	Magnification	3x
	Field of View	5°
	Focus Range	0.5m—∞
Laser Pointer	Wave Length	635nm Red
	Power	5mw
	Laser range (Day Time)	200m
	Laser Coaxial Accuracy	<5"
	Laser Spot Diameter	<2mm/100m
Vial	Plate Vial	30"/ 2mm
Vial	Circular Vial	8'/ 2mm
Display	Dual Face	LED Backlight
Power	Power Resource	Li-ion Battery3.7y 1800mAh
Power	Working Temperature	-20℃～+50℃

High-Precision DT-01 Electronic Theodolite with Dual Laser Plummet for Surveying & Construction
