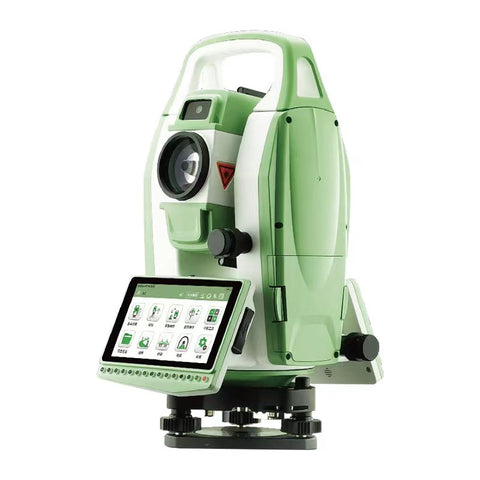

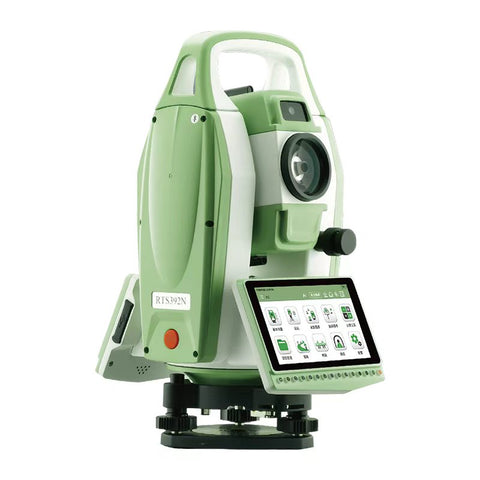

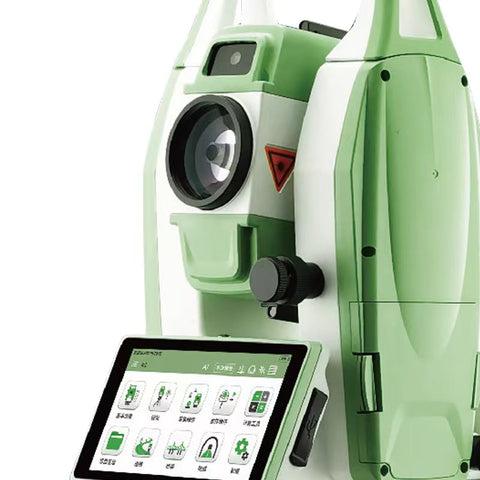

MLLS392N Android Total Station for Construction & Deformation Monitoring – Dual-Axis Compensation, FurSpacer Software, Type-C Fast Charging

The MLLS392N Android Total Station runs on Android 12 with an open platform, allowing customized apps for industries like road, bridge, tunnel, and terrain surveying.

Equipped with a 5.5‑inch HD color touchscreen (1280×720) and the newly designed FurSpacer software, the MLLS392N Android Total Station supports image‑assisted measurement, visual stakeout, and CAD stakeout for complex jobs.

The MLLS392N Android Total Station features a built‑in high‑sensitivity coaxial integrated dual‑axis compensation system, ensuring stable accuracy even on uneven terrain.

With 2GB RAM + 16GB ROM, USB 2.0 camera module (2592×1944 resolution), and massive storage, the MLLS392N Android Total Station runs smoothly and captures clear images for ancient building protection and special shaded building measurement.

The MLLS392N Android Total Station is powered by a 7.4V/3200mAh high‑capacity lithium battery with Type‑C charging port, delivering 12 hours of working time, plus multiple communication methods: Bluetooth, WiFi, USB drive, and optional 4G full network.

For tunnel measurement, bridge measurement, and terrain mapping, the MLLS392N Android Total Station provides professional functions including one‑man survey, deformation monitoring, smart stakeout, and industrial inspection through the FurSpacer platform.

MLLS392N Android Total Station Specifications

Telescope	Compensator
Imaging: Erect	Type: Integrated Dual-axis Compensator
Magnification:30X	Compensation Range:t6'
FieldofView:1°30
Minimum Viewing Distance:1.0m
Effective Aperture:45mm
Resolution:4"

Angle Measurement	Plummet
Accuracy:2"	Type:635nmsemiconductorlaser
Angle Measurement Method:Absolute Encoding	Accuracy:+1.0mm/0.8~-1.5m
Detection Way:Diameter 2/4 Channel Line Array CMOS	Spot Diameter:≤2.0mmy/0.8~-1.5m
Minimumreading:1"/0.l"optional	Maximum Output Power:0.7mW~1.0mW
	Brightness:Adjustable
