The Mountlaser MTS-102N Total Station is an ideal choice for the measurement field with its excellent compatibility and flexible configuration options.

The operating system of the MTS-102N total station is exactly the same as that of the GTS-102N and GTS-332N, ensuring that users can switch and use it seamlessly.

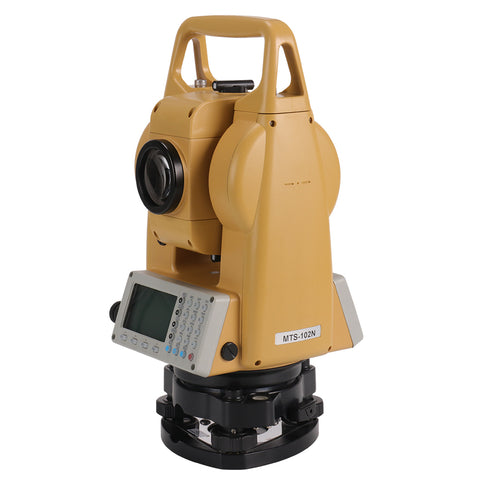

Mountlaser MTS-102N Total Station
The standard configuration is single-axis, and users can choose to add dual-axis functions according to specific needs to further enhance the measurement capabilities.

Mountlaser MTS-102N Total Station
In addition, the MTS-102N total station provides optional Bluetooth and USB flash memory functions to enhance the convenience of data transmission.

Mountlaser MTS-102N Total Station Specifications：

Model No.	MTS102N
Angle Measurement	Absolute Encoding
	1"
	2"
Telescope	45mm
	Erect
	30X
	1° 30’
	1.5m
	Yes
Compensator Tilt Corection	Dual Axis Tilt Sensor
	±3'
	1” (0.1mgon)
Measurement Range (Single Prism)	3500m
	350m
	±(2mm+2ppm×D)
Measurement Range (Non-Prism)(For Option)	400m
Measurement Range (Non-Prism)(For Option)	±(3mm+2ppm×D)
Communication	Bluetooth (For Option)
Operation	Real-time Operating System
	Liquid Type
	2 Sides Alphanumeric Backlit Crystal Keyboard
Level Sensitivity	8'/ 2mm
Level Sensitivity	30"/ 2mm
Laser Plummet	Laser Point
Laser Plummet	1mm at 1.5m Instrument Height
Environmental	-20℃-+55℃
	-40℃-+60℃
	Manual input
	IP55
Power Supply	Li-ion 8.4V 2200mAh
	Optimal 16h (Angle Measurement Each 30s )/ 6h (Typical)
	Approx.12000 Times

Mountlaser MTS-102N Total Station - Strong Compatibility
