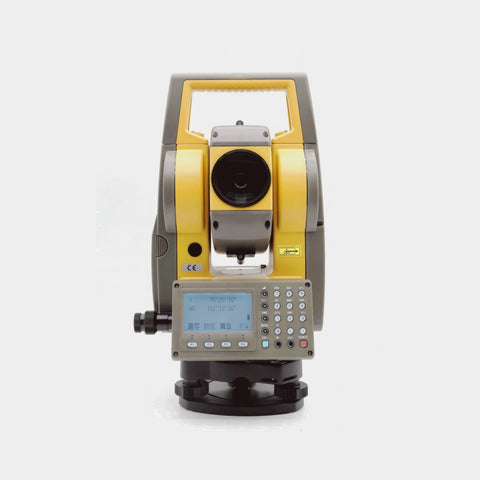

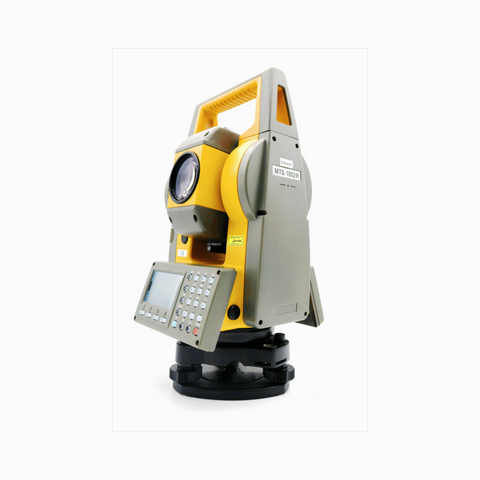

MTS1002R+ Total Station Engineered for extensive projects, this Long Range Total Station boasts an exceptional 7,500m measurement range with a single prism and a powerful 1,000m non-prism (reflectorless) range, allowing you to measure difficult-to-reach points safely and efficiently.

MTS1002R+ as a true High Precision Total Station, the MTS1002R+ delivers outstanding 2" angular accuracy and ±(2mm+2ppm x D) distance measurement accuracy. This ensures reliable and exact data for critical surveying, construction, and engineering applications.

MTS1002R+ High Precision Total Station Featuring absolute encoding for instant setup and a dual-axis compensator that automatically corrects tilts up to ±3', this Long Range Total Station guarantees speed and accuracy from the moment you power it on, minimizing errors and maximizing productivity.

MTS1002R+ High Precision Total Station

The 45mm aperture telescope provides 30x magnification and an erect image for fast, easy, and accurate target sighting. The illuminated reticle ensures clear visibility in all lighting conditions, making this High Precision Total Station a user-friendly tool for day-long operation.

With integrated Bluetooth wireless communication, a standard USB port, and a massive 50,000-point internal memory, this Long Range Total Station offers seamless data transfer to field controllers and PCs, streamlining your workflow from the field to the office.

MTS1002R+ High Precision Total Station Specifications

Model No.	TP System GM52	MTS1002R+
Angle Measurement	Measurement Method	Absolute Encoding
	Minimum Readout	1"
	Accuracy	2"
Telescope	Aperture	45mm
	lmage	Erect
	Magnification	30X
	Field of View	1° 30'
	Minimum Focus Distance	1.5m
	Reticle llluminated	Yes
Compensator Tilt Correction	System	Dual Axis Tilt Sensor
	Working Range	±3'
	Accuracy	1"(0.1mgon)
Measurement Range (Single-Prism)	Single Prism	7500m
	Reflective Sheet	1000m
	Accuracy	±(2mm+2ppmxD)
Measurement Range (Non-Prism)	Reflectorless Range	1000m
Measurement Range (Non-Prism)	Accuracy	±(3mm+2ppmxD)
Communication	Internal Data Memory	50000 Points
	Interface	Standard RS232,USB Port
	Wireless Communication	Bluetooth
Operation	System	Real-time Operating System
	Display	Liquid Type
	Keyboard	2 Sides Alphanumeric Backlit Crystal Keyboard
Level Sensitivity	Circular Level	8' 2mm
Level Sensitivity	Plate Level	30'/ 2mm
Laser Plummet	Type	Laser Point
Laser Plummet	Centering Accuracy	1mm at 1.5m lnstrument Height
Environmental	Operating Temperature	-20C~+55C
	Storage Temperature	-40C~+60C
	Temperature & Pressure	Manual input
	Dust & Water Proof (lEC60529 $tandard)	IP55

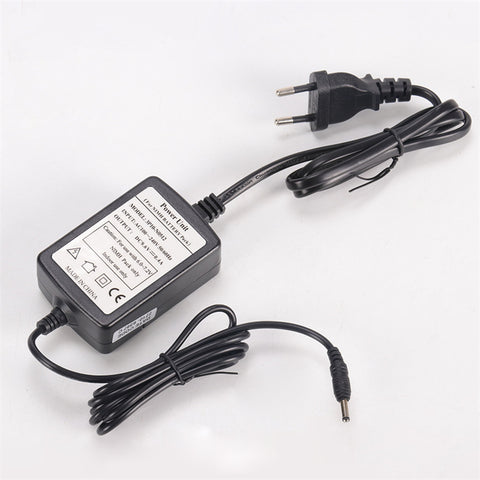

Power Supply	Battery type	NI-MH Battery BDC25H 7.2V 2500mAh
	Operating Time	Optimal 20h (Angle Measurerent Only N 10h (Typical)
	Measuring Times	Approx.12000 Times

MTS1002R+ High Precision Total Station | 2" Accuracy, Ideal for Construction Surveying & Engineering Measurement
