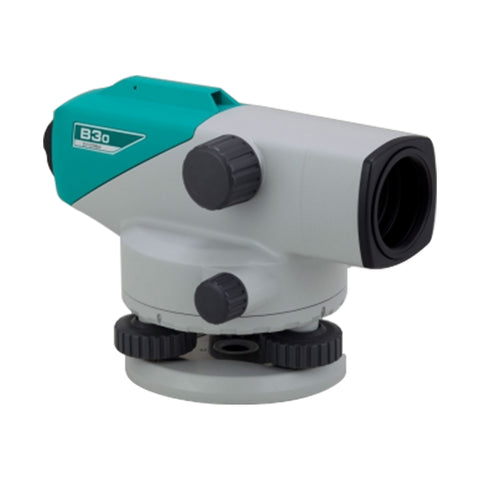

Professional B30 Automatic Level Overview

The Professional B30 Automatic Level is a high-performance level designed for S-style equipment with excellent accuracy and reliability.

The standard deviation of the Professional B30 Automatic Level is only 1.5mm in 1km bidirectional measurement, ensuring your efficient performance in various measurement tasks. With a telescope magnification of 28 times and an effective aperture of 36mm objective lens, the observation is clearer. The shortest aiming distance is 0.3m, which is suitable for various field environments.

The magnetic damping compensator of the B30 Automatic Level provides a horizontal accuracy of ±0.5" within a working range of ±15', ensuring the reliability of the measurement results.

Professional B30 Automatic Level

The Professional B30 Automatic Level has a bubble accuracy of 10' / 2mm and a resolution of 3.5". It can be set quickly with a setting time of ≤2 seconds, which greatly improves work efficiency. The device is waterproof and dustproof with an IPX6 rating, suitable for various adverse weather conditions.

Professional B30 Automatic Level Specifications

Model No.	B30
Standard Deviation for 1km Double-run Leveling	1.5mm
Telescope Magnification	28X
Telescope Image	Erect
Shortest Sighting Distance	0.3m
Effective Aperture Size of Object Lens	36mm
Angle of View	1°25'
View Distance Error	±0.4%
Focusing Error	±1.0mm
Leveling Accuracy	±0.5"
Compensator Type	Magnetic-Damping
Compensator Working Range	±15'
Compensating Error	±0.5"
Resolution	3.5"
Reticle	Cross reticle
Setting Time	≤2S
Bubble	10' / 2mm
Horizontal Circle	360° or 400 gon optional
Water and Dust Proof	IPX6
Standard Accessory	Manual, Allen Key, Adjusting Pin, Plastic Case

Professional B30 Automatic Level - Professional high-precision automatic level to ensure measurement reliability
