L-Bar Monitoring Prisms equip bridges with "eagle eyes" for health monitoring

Inside the tranquil bridge, a series of tiny L-shaped devices continuously capture the most minute pulsations and deformations of the structure with millimeter-level precision.

When the laser beam of a total station meets the L-Bar Monitoring Prisms, a bridge gains its own "eagle eye" system. These unique L-shaped monitoring prisms, by efficiently reflecting measurement signals, can capture the most minute structural deformations, ensuring that potential safety hazards are detected at the first moment.

Professionals in the engineering and surveying fields understand that reliable structural monitoring is the first line of defense against disasters, and a high-quality L-Bar Monitoring Prisms system is a core component of this line of defense.

L-Bar Monitoring Prisms Product Core

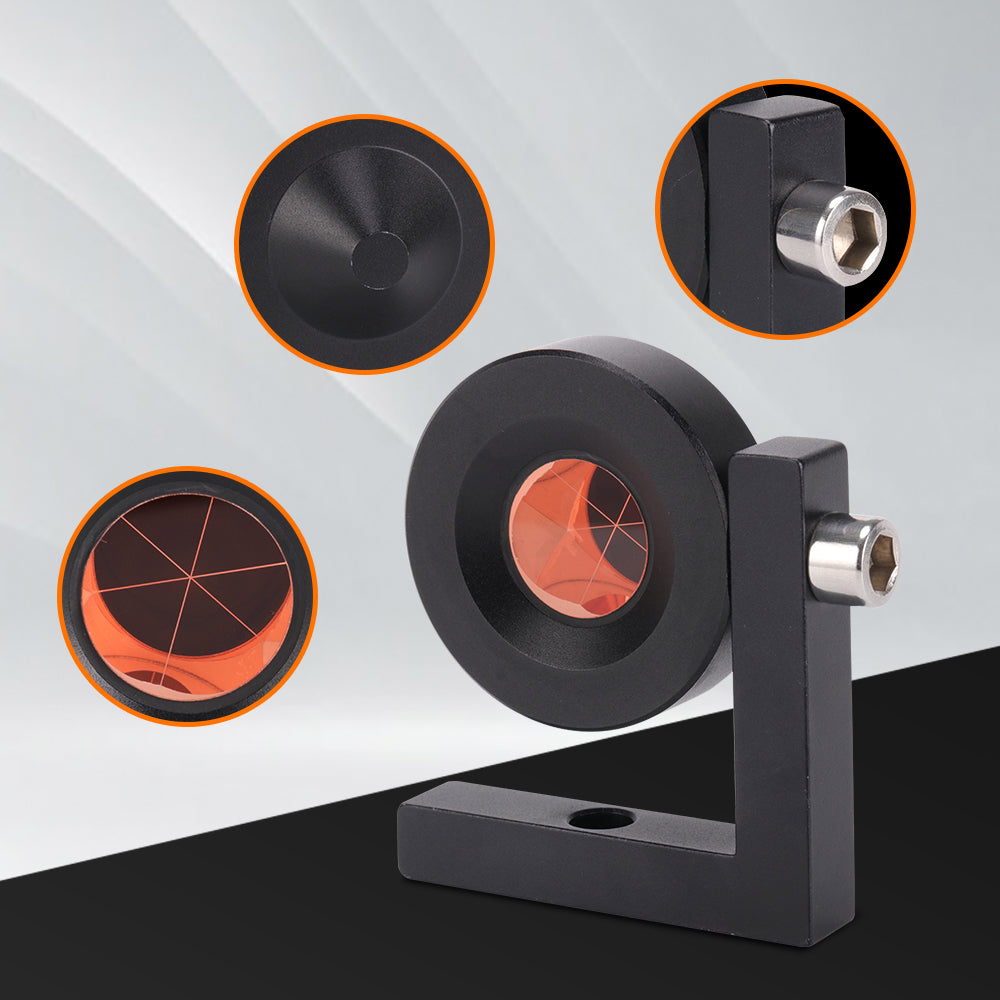

L-Bar Monitoring Prisms, or L-bar monitoring prisms, are precision optical components in the field of engineering monitoring. At their core is a precision-ground optical glass prism (usually made of K9 material), sealed in a robust aluminum alloy housing and mounted on an L-shaped metal bracket.

This design allows for secure and flexible mounting on structural surfaces of varying orientations and types, from vertical piers to horizontal beams.

Its working principle involves efficiently reflecting light signals emitted by measuring instruments such as total stations, scanning stations, or multistations as a cooperative target. By measuring the round-trip time or phase change of the light signal, the distance and angle between the instrument and the prism can be precisely calculated, achieving millimeter-level or even higher precision three-dimensional coordinate measurements.

The Bridge's "Eagle Eye": Four Core Advantages Explained

Why can L-Bar Monitoring Prisms become the "eagle eye" of modern bridge health monitoring? Its superior performance is reflected in the following key aspects:

Sub-second Measurement Accuracy, Insightful Observation
Modern bridge monitoring allows for no errors. High-quality L-Bar Monitoring Prisms provide extremely high angle measurement accuracy.

Depending on the model, its beam deviation accuracy can reach ≤3″, ≤5″, or ≤8″ (arcseconds). This means that in long-distance measurements, it can resolve extremely minute angular changes, thus accurately capturing key deformation parameters such as the tilt of bridge piers and the deflection of main beams, providing reliable data for safety assessments.

Ultra-long-distance measurement with wide coverage: Bridge structures often have large spans and high heights. A high-quality L-Bar prism, combined with high-performance measuring instruments, can achieve an effective measurement range of 2000 meters or even 3000 meters under normal weather conditions.

This means that by setting up a measuring station on one side of the riverbank, the displacement of the bridge towers on the opposite bank can be stably monitored, greatly improving the flexibility and efficiency of the monitoring scheme.

Rugged and durable, resistant to harsh environments: Bridge monitoring equipment needs to be exposed to complex environments such as wind, rain, temperature differences, and vibration for extended periods. Professional L-Bar Monitoring... Prisms feature a sealed design.

The prism is sealed within a dustproof and waterproof metal housing, and the L-bar bracket is anodized. The overall structure effectively resists moisture, dust, and corrosion, ensuring long-term stable operation under harsh conditions and significantly reducing maintenance costs.

Flexible Installation and Permanent Reference Point
The L-bar bracket design is the essence of this type of product. It typically provides multiple mounting holes (such as 10mm and 6.5mm diameter holes), allowing users to securely fix the prism to various surfaces such as concrete and steel structures.

Once installed, it becomes a stable, reliable, and permanent measurement reference point. Whether monitoring the installation accuracy of precast bridge components during construction or conducting periodic or continuous health monitoring during operation, it provides a consistent reference coordinate.

Beyond Bridges: A Wide Range of Applications
L-Bar Monitoring The applications of Prisms extend far beyond bridges. Their stable and reliable characteristics make them a universal solution for safety monitoring of various infrastructure and geological engineering projects.

Tunnel and Subway Engineering: Monitors the convergence deformation of lining structures during construction and after operation, ensuring the safety of underground spaces.

High-Rise Buildings and Large Stadiums: Observes building settlement, tilt, and dynamic responses under strong winds and temperature variations.

Slopes, Dams, and Mining Areas: Constitutes an early warning system for landslides, dam deformation, and subsidence in mining areas, preventing geological disasters.

Industrial and Historical Buildings: Monitors the structural stability of heavy-duty factories and historical buildings during surrounding construction or their own aging process.

With a wide variety of products on the market, how do you choose the right L-Bar Monitoring Prisms for your project?

Accuracy and Needs Matching: Don't blindly pursue the highest accuracy. Choose the most cost-effective model from different accuracy levels such as ≤3″, ≤5″, and ≤8″, based on the level of the monitoring project, allowable deformation, and budget.

Environmental Adaptability Certification: Always confirm the product's protection rating, especially its dustproof and waterproof performance. Inquire whether it has undergone long-term environmental testing, which is crucial for permanent outdoor installations. Compatibility and System Integration: Verify prism constants (e.g., 0mm, -25mm, -40mm, etc.) to ensure full compatibility with your existing total station and data processing software systems, avoiding data deviations.

Manufacturer Qualifications: Prioritize professional optical manufacturers with ISO quality management system certification (e.g., ISO 9001). Assess their complete capabilities in optical design, processing, coating, and testing, as this directly determines the long-term stability and reliability of the product.

For users seeking top-tier performance and reliability, partnering with a professional optical factory possessing complete vertical integration capabilities from R&D to production is the best choice. A seasoned L-Bar Monitoring Prisms manufacturer like Mountlaser can integrate precision prisms, robust L-shaped brackets, and reliable sealing technology into an optimal solution.

When considering equipping your next critical monitoring project with "eagle eyes," directly contacting a professional manufacturer like Mountlaser for technical consultation and customization is the wisest starting point to ensure project success.
